TCR class

Description

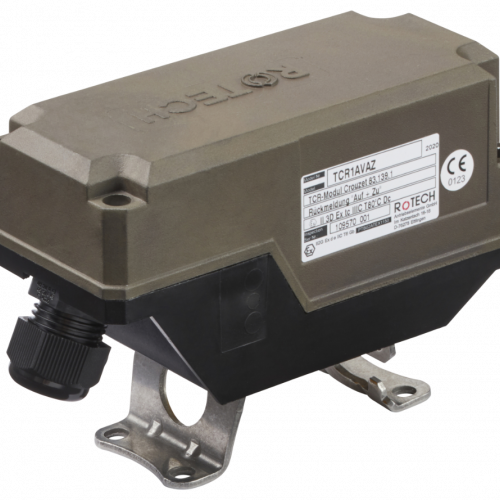

The TCR-class was developed in close collaboration with our customers. Compared to common technology the slim design offers many advantages for the user.


Technical data

Dimensions: 144x64x70 (without vision beacon), 160x62x80 (with vision beacon)

Housing: Vestamid (base), Macrolon/Vestamid/Aluminium (cover)

Ingress protection: IP65 (with breathing membrane), IP67 / IP68 (without breathing membrane)


Specifics

Very slim design, yet there is the possiblilty to mount 4 micro-,
2 slotted- or 2 proximity switches

Shock proof and step proof cable entry, weatherproof cable gland

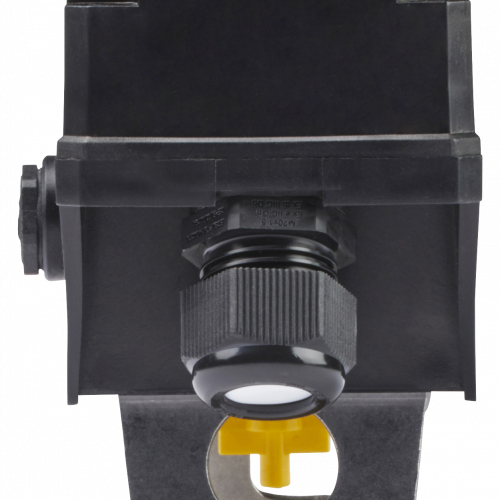

• The lower part of the base presents an aeration and deaeration membrane to
avoid perspiration water due to temperature differences.




Explosion protection

Depending on the mounted micro-switch or sensor Je nach verbautem Mikroschalter oder Sensor ist der Einsatz in Gas-Ex-Zone 1 und 2 (Kategorie 2G und 3G), sowie in Staub-Ex-Zone 21 und 22 (Kategorie 2D und 3D) möglich. Für Staub-Ex-Zone 21 ist das Gehäuse in der Ausführung mit erhöhter Sicherheit (Ex e) erforderlich.


Ambient temperature

Low temperature design: max. -25° C

High temperature: max. 100° C


Certificate and approvals

EAC, SIL2


Product variants

Housing cover: closed cover (macrolon, vestamid, aluminium), vision panel or vision beacon (yellow/red)

Axis: Stainless steel (1.4305) oder techn. plastics (POM)

Qty of cable glands: system connection 1x M20x1.5, solenoid valve connection 1x M12x1,5

Clamps: max. 10 terminal strips 1,5 mm2
